Each Armored cable contains high strength, good bending performance, no gel, easy to be connected and operated on with buffer design, independent strength member and sheath to prevent damage from environmental and mechanical stress. Outer jacket’s colors varies according to the types of optical fibers (indoor use), black color is recommended for outdoor use, options for other colors available upon request.

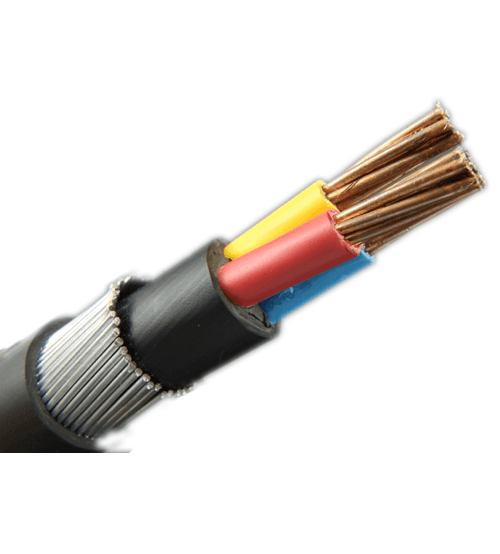

16mm x 4 Core Amroured Cable (Nigerchin WIRE AND CABLE)
16mm 4 Core Armoured Cable is a variant of electrical cable that has a cross-sectional diameter of 16mm as well as a Live and Neutral core within the cable itself.
The construction of this cable is commonly identified by the plain annealed stranded copper used for the conductors/cores, cross-linked polyethylene (XLPE) for the insulation, PVC (Polyvinyl Chloride) for both the bedding and sheathing and steel wire for the armour protecting the insulating layers beneath.
The steel wire armour also provides a form of mechanical protection, which means that it has higher pulling loads making it suitable for being dispensed from large cable drums. As well as providing mechnical protection, it also ensures that the cable can withstand highly corrosive environments such as being installed underground as well as being attached to outdoor walls and structures using Cable Cleats.
16mm 4 Core Armoured Cable is found in a wide range of industries across the globe. Some examples of the most common ones are:-
– The transport industry
– Railway industry
– Underneath roads carrying mains electricity to buildings
– Cable Ducting within warehouses.
No. of cores / size of cable – 4
Approx overall diameter – 23.6mm
Approx weight (m) – 1.3Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating: 600/1000
