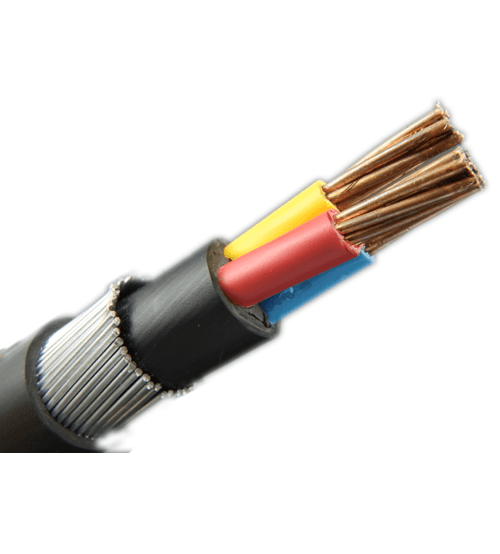

2.5mm x 4Core Armoured Cable (Kablemetal)

70mm 4 Core Armoured Cable is a size and type of steel wire armoured cable. Primarily found in large powered networks and underneath roadways supplying mains electricity to large buildings. It can also be found within the transport industry, specifically railways powering the trains and buildings located beside the tracks. Due to the size of this cable, it is perfectly suitable for large amounts of power running through it on a daily basis, 24 hours a day.
The best solution to this issue would be to buy a length of earth cable that matches the length of the Armoured Cable. This would negate the steel wire from being used as an earth, meaning it is a safer alternative.
70mm 4 Core Armoured Cable is constructed from the following materials;
– Plain Annealed Stranded Copper for the cores
– Cross-Linked Polyethylene for the Insulation
– PVC (Polyvinyl Chloride) for the bedding and sheathing
– Steel Wire for the armour protecting the insulating layers beneath.
No. of cores / size of cable – 4
Approx overall diameter – 36.8mm
Approx weight (m) – 4.23Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene
Bedding – Polyvinyl Chloride
Armour / Protection – Steel Wire
Sheath / Jacket – Polyvinyl Chloride
Colour – Black
Application – Primarily found in large powered networks as well as buried underneath roads supplying mains electricity to large buildings etc.
Voltage Rating – 600/1000Vt

10mm 4 Core Armoured Cable is a large variant of electrical cable used to supply mains voltage electricity to various devices and powered networks. Weatherproof and dust-proof, this cable is suitable for underground installation as well as being attached to structures or buildings using Cable Cleats. It is commonly found in a range of installations including;
– The Railway and Transport industry
– Underneath roads powering buildings
– Industrial networks such as power plants and factories
– Within cable ducting in the roofs of warehouses
The Cable is constructed from the following materials; Plain Annealed Stranded Copper for the conductors/cores, cross-linked polyethylene (XLPE) for the insulation, Steel Wire for the Armour and PVC (Polyvinyl Chloride) for the bedding and sheathing.
No. of cores / size of cable – 4
Approx overall diameter – 21.1mm
Approx weight (m) – 0.98Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Bedding – PVC
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating: – 600/1000Vt
