ARMOURED CABLE

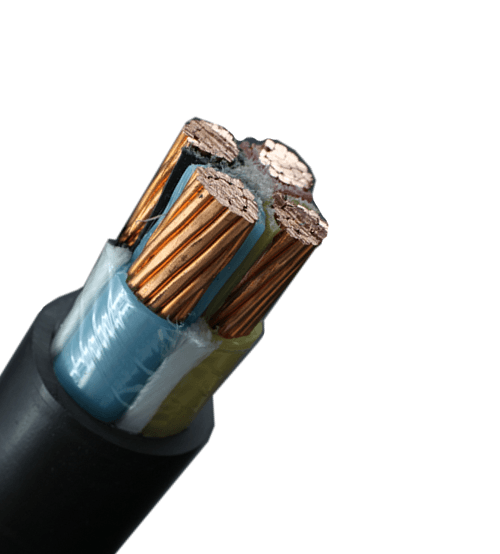

50mm x 4Core Armoured Cable (Nigerchin Wire and Cable)
50mm 4 Core Armoured Cable is a large and specific size of Armoured Cable, primarily found within large powered networks whilst also carrying power to a range of different powered devices. Although this cable can be used for domestic uses such as powering outdoor sheds and greenhouses as well as water features and outdoor lights, due to its size, it is commonly found within more industrial installations such as power stations and large construction sites.
The cable is constructed itself from the following; Plain Annealed Stranded Copper for the cores/conductors, XLPE (Cross-Linked Polyethylene) for the insulation, PVC (Polyvinyl Chloride) for the bedding and sheathing & steel wire for the armour protecting the layers beneath.
The steel wire armour within the cable also provides a mechanical protection, therefore it enables the cable higher pulling loads, which is useful for when the cable is being dispensed from a large drum.
No. of cores / size of cable – 4
Approx overall diameter – 31.3mm
Approx weight (m) – 2.95Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene
Bedding – Polyvinyl Chloride
Armour / Protection – Steel wire
Sheath / Jacket – Polyvinyl Chloride
Colour – Black
Application – Used primarily within large powered networks supplying mains electricity to multiple devices.
Voltage Rating: 600/1000Vt
₦18,691.00
Each Armored cable contains high strength, good bending performance, no gel, easy to be connected and operated on with buffer design, independent strength member and sheath to prevent damage from environmental and mechanical stress. Outer jacket’s colors varies according to the types of optical fibers (indoor use), black color is recommended for outdoor use, options for other colors available upon request.
Based on 0 reviews
Be the first to review “50mm x 4Core Armoured Cable (Nigerchin Wire and Cable)”
Vendor Information
- Vendor: admin
- No ratings found yet!
- GEAR SWITCHES
MEM – Eaton 63A TPN Gear Switch
The top and bottom endplates are removable. Door can be removed for ease of installation. Incorporate knockouts and gasketed doors, IP41 rated protection. Handle: chromium-plated handles with ON (I) / OFF (O) indication. The switch can be locked ON or OFF by means of a padlock. Internal fixing: enables the unit to be mounted side by side with other units. Maximum current: 63A Number of Poles: 3 Poles. 3 Phase. Switches: quick make-and-break type, suitable for use on AC or DOC. Removable moving contact assemblies: to facilitate wiring. Interiors comprise porcelain bases fitted with non-ferrous conducting components.
SKU: MEM63 - CHANDELIER LIGHT, Electro, HOME&OFFICE LIGHTING, LIGHTING
Marie Therese Chandelier Black 5 Arm
‘-For your safety, this product must be installed in accordance with local Building Regulations. If in any doubt, or where required by law, consult a competent person who is registered with an electrical self-certification scheme. Further information is available online or from your local authority-
SKU: 226
Related products
- ARMOURED CABLE
2.5mm x 4Core Armoured Cable (Kablemetal)
2.5mm 4 Core Armoured Cable is commonly found supplying mains voltage electricity to powered devices and networks. For example, it could be used to power outdoor buildings such as garden sheds or workshops as well as garden features such as jacuzzi/hot tubs.
The cable contains a steel wire armour, meaning it provides a mechanical protection for the insulating layers underneath. This also enables the cable to have higher pulling loads, making it perfectly suitable for dispensing from a cable drum on a building site, etc.
It’s construction is commonly identified by the plain annealed stranded copper for the cores, the PVC (Polyvinyl Chloride) for the bedding and sheathing, armour made from steel wire and XLPE (Cross-Linked Polyethylene) for the insulation.
The Steel Wire can also be used as a CPC (Circuit Protective Conductor), meaning the armour can be used an earth for the cable. This means that even though the cable has an earth core, it is still protected, meaning it abides by all health and safety regulations.
No. of cores / size of cable – 4
Approx overall diameter – 15.3mm
Approx weight (m) – 0.43Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Bedding – PVC
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating: – 600/1000VtSKU: 1515 - Electro, ARMOURED CABLE, ELECTRICAL INDUSTRIAL
35mm 3Core Amroured Cable|Per Meter
Number of optical fibers cores 3 and 4 other numbers available upon request, Options available for PVC, LSZH or PE outer jacket, which is ultra-violet radiation resistant, water-proof, mildew-proof,environmental stress endurable and with no acidic gas released to corrode switch room equipment.
SKU: 309 - ARMOURED CABLE
10mm x 4Core Armoured Cable (Kablemetal Nexans Nigeria)
10mm 4 Core Armoured Cable is a large variant of electrical cable used to supply mains voltage electricity to various devices and powered networks. Weatherproof and dust-proof, this cable is suitable for underground installation as well as being attached to structures or buildings using Cable Cleats. It is commonly found in a range of installations including;
– The Railway and Transport industry
– Underneath roads powering buildings
– Industrial networks such as power plants and factories
– Within cable ducting in the roofs of warehouses
The Cable is constructed from the following materials; Plain Annealed Stranded Copper for the conductors/cores, cross-linked polyethylene (XLPE) for the insulation, Steel Wire for the Armour and PVC (Polyvinyl Chloride) for the bedding and sheathing.
No. of cores / size of cable – 4
Approx overall diameter – 21.1mm
Approx weight (m) – 0.98Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Bedding – PVC
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating: – 600/1000VtSKU: 1518 - ARMOURED CABLE
6mm x 4Core Armoured Cable (Kablemetal Nexans Nigeria)
Suitable for under and over-ground usage alike, 6mm 4 Core Armoured Cable is a dust and waterproof variant of electrical cable that is commonly found within powered networks and supplying mains electricity to a large variety of devices, both domestic and industrial.
This particular type of cable is constructed using Plain Annealed Stranded Copper for the conductors, XLPE (Cross-Linked Polyethylene) for the insulation, PVC (Polyvinyl Chloride) for the bedding and sheathing and Steel Wire for the armouring.
Not only does the Steel Wire Armour provide a method of mechanical protection, meaning it is suitable for installation into highly-corrosive environments, the armour also provides a form of CPC (Circuit Protective Conductor) meaning it can be used as an earth for the cable. This means that an earth core/cable is not required although it is still recommended as an extra safety measure.
No. of cores / size of cable – 4
Approx overall diameter – 18.7mm
Approx weight (m) – 0.75Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Bedding – PVC
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating – 600/1000VtSKU: 1517
