Each Armored cable contains high strength, good bending performance, no gel, easy to be connected and operated on with buffer design, independent strength member and sheath to prevent damage from environmental and mechanical stress. Outer jacket’s colors varies according to the types of optical fibers (indoor use), black color is recommended for outdoor use, options for other colors available upon request.

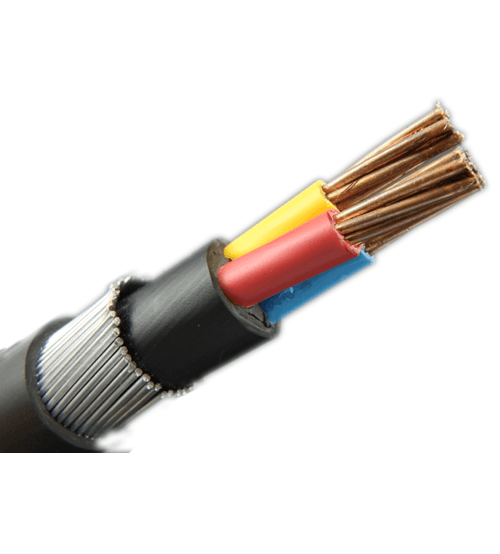

6mm x 4Core Armoured Cable Comestar
Suitable for under and over-ground usage alike, 6mm 4 Core Armoured Cable is a dust and waterproof variant of electrical cable that is commonly found within powered networks and supplying mains electricity to a large variety of devices, both domestic and industrial.
This particular type of cable is constructed using Plain Annealed Stranded Copper for the conductors, XLPE (Cross-Linked Polyethylene) for the insulation, PVC (Polyvinyl Chloride) for the bedding and sheathing and Steel Wire for the armouring.
Not only does the Steel Wire Armour provide a method of mechanical protection, meaning it is suitable for installation into highly-corrosive environments, the armour also provides a form of CPC (Circuit Protective Conductor) meaning it can be used as an earth for the cable. This means that an earth core/cable is not required although it is still recommended as an extra safety measure.
No. of cores / size of cable – 4
Approx overall diameter – 18.7mm
Approx weight (m) – 0.75Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Bedding – PVC
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating – 600/1000Vt
Based on 0 reviews
- Vendor: admin
- No ratings found yet!
- GEAR SWITCHES
ABB Gear Switch 63A TPN
With ABB’s change-over switches, people and equipment are safe
Easy and flexible installation
Depending on the size, the switch can be mounted in different positions, on the panel door or DIN rail. Snap-on accessories and connections are available.
• IP65 rated (not suitable for external installation) Steel Enclosure
• Powder coated textured finish (RAL 7035)
• All switches are supplied with fuses and removable gland plates
• All 3 pole switches include detachable neutral link (OT160 solid link)
• Hinged lid complete with lock
• Switch Fuses are internally rated IP20 on incoming terminals up to 63A
• Pad lockable pistol grip handle as standard • Switch Fuses 100A are supplied with incoming terminal shrouds not fitted to allow customer connectionsSKU: ABB63
