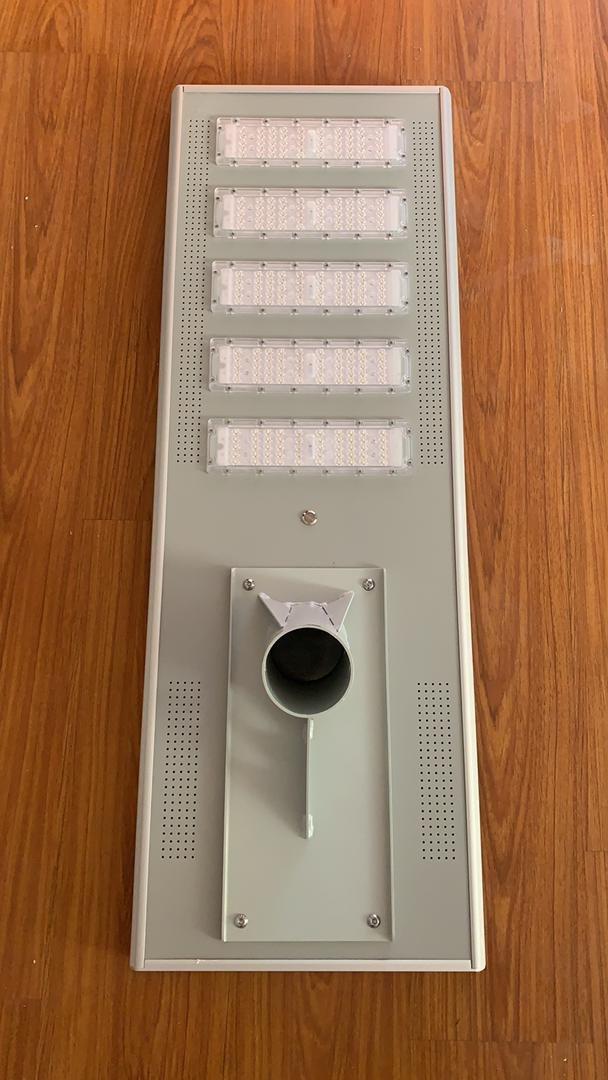

All in One Solar Street Light LED 100watt 5 eyes
Power: 100W
Solar panels: 60W
Lithium iron phosphate battery: 219WH
Controller: PWM (25A)
LED lamp bead: Purui
Product size: 1090*382*50MM
Warranty for 2 years
₦245,000.00
CompareBased on 0 reviews
Be the first to review “All in One Solar Street Light LED 100watt 5 eyes”
-
