CHINT

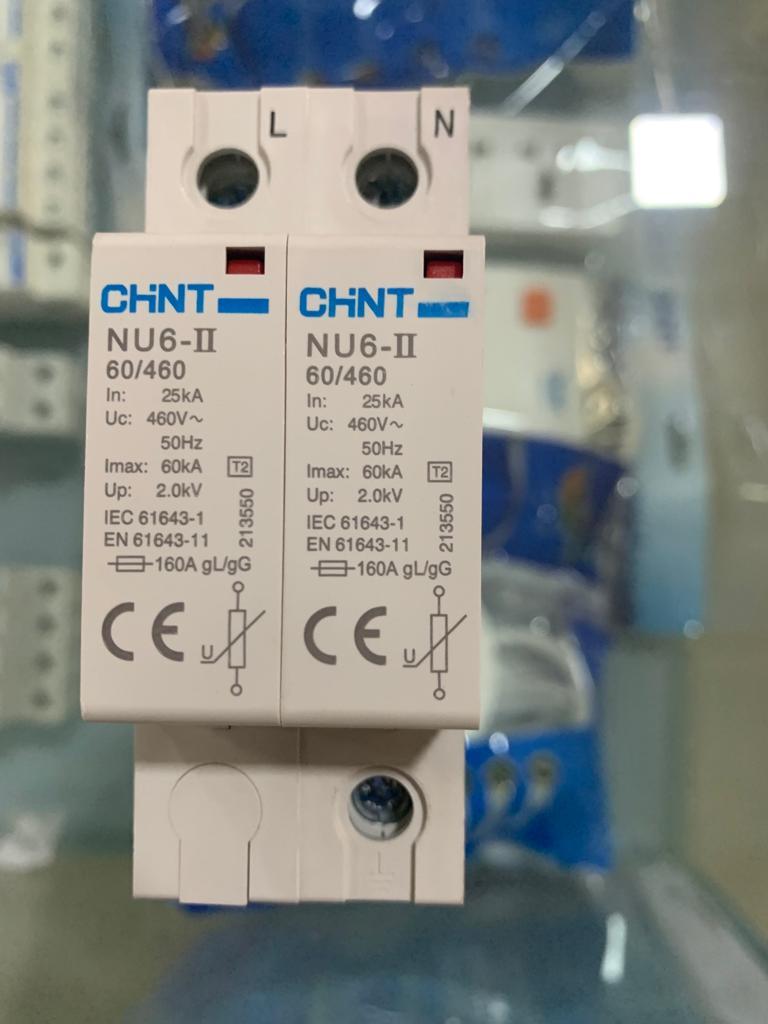

CHINT NU6-Ⅱ Low-voltage Surge Arrester 25 – 60A
NU6-Ⅱ Low-voltage Surge Arrester
- Certificates: international certificates are under proceeding;
- Number of poles: 1, 2,3, 4;
- Electric ratings: 230/400V, AC50Hz;
- Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
- Standard: IEC 61643-1, EN 61643-11
₦36,000.00
Based on 0 reviews
Be the first to review “CHINT NU6-Ⅱ Low-voltage Surge Arrester 25 – 60A”
Vendor Information
- 5.00 rating from 1 review
-
