100% New Copper
Length: 100 Metres
Weight (Kg) 1.90

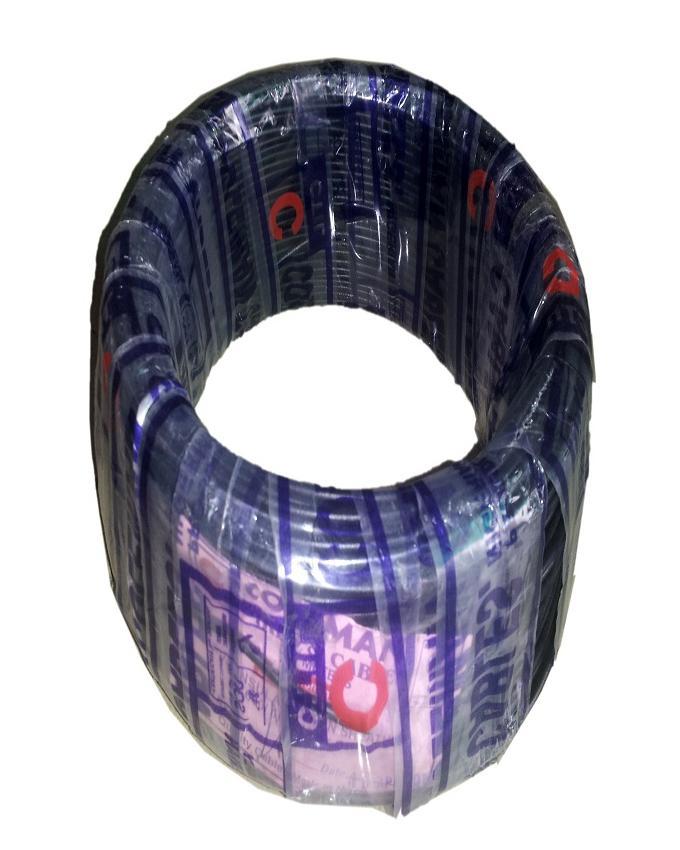

Coleman cable 6mm Wire & Cable – Black
PVC insulated flame retardant cables are fixed laid in the circuit with frequency 50Hz and voltage up to 0.6/1KV running from the main breaker panel or fuse box outlets to provide reliable, high-quality electrical current for your residential installations with our range of 100% pure copper wire from top brands like Coleman,you are sure of authentic products.
Coleman offers a wide range of products certified by Nigerian Industrial Standard (NIS) and the Standards Organisation of Nigeria (SON). (ISO 9001/2000 and ISO 14001 SON SGS CE standard and British standards to make sure our electrical are safe for use at home or offices etc and our brands of wires and cable can be used for power supply and general wiring in a vast range of low voltage (LV), medium voltage (MV) and high voltage (HV).
Based on 0 reviews
- Vendor: admin
- No ratings found yet!
- CABLE AND CABLE MANAGEMENT, Electro, SINGLE CORE WIRE
Cutix 10mm Single Core Copper Wire
Our cables with PVC (Polyvinyl Chloride) sheathing are used in a vast number of applications from fixed wiring to flexible installations and they are available in various sizes, colours and number of conductors.SKU: cutix10m
- ARMOURED CABLE
25mm x 4Core Armoured Cable – Coleman
Suitable for under and over-ground usage alike, 25mm 4 Core Armoured Cable is a dust and waterproof variant of electrical cable that is commonly found within powered networks and supplying mains electricity to a large variety of devices, both domestic and industrial.
This particular type of cable is constructed using Plain Annealed Stranded Copper for the conductors, XLPE (Cross-Linked Polyethylene) for the insulation, PVC (Polyvinyl Chloride) for the bedding and sheathing and Steel Wire for the armouring.
Not only does the Steel Wire Armour provide a method of mechanical protection, meaning it is suitable for installation into highly-corrosive environments, the armour also provides a form of CPC (Circuit Protective Conductor) meaning it can be used as an earth for the cable. This means that an earth core/cable is not required although it is still recommended as an extra safety measure.
No. of cores / size of cable – 4
Approx overall diameter – 18.7mm
Approx weight (m) – 0.75Kg
Conductors – Plain Annealed Stranded Copper
Insulation – Cross-Linked Polyethylene (XLPE)
Bedding – PVC
Armour / Protection – Steel Wire
Sheath / Jacket – PVC
Colour – Black
Application – Primarily found within powered networks and providing mains electricity to powered devices.
Voltage Rating – 600/1000VtSKU: coleman25mm
- ELECTRICAL FITTINGS, Electro, TRUNCKING
25x40mm Dignity PVC Trunking
The advantages of PVC Wire Duct:
1. Low cost, significant cost savings compared to standard traditional tray products.
2. Light in weight, wide range of sizes.
3. Fast heat dispersion.
4. Strong enough to withstand short circuits. Provides strength, rigidity without additional hardware.
5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs.
6.Flexible, easy and fast installation. Design allows cable exit or entry at any point.
7. Cables can be secured to clamps or ties.
8.Various hardware accessories available to fix, support and install.
9. Safe smooth edge design to protect cable.
10.Easy for line check and cleaning , easy maintained.SKU: 409
- ELECTRICAL INDUSTRIAL, Electro, LADDERS
Ladders With Self Supported Trestle
Wide fiberglass channel for grip and extra strength
Aluminum steps reduce overall weight without reducing protection level
D-rung ribbed steps offer flat surface climbing area for effortless climbing
Rung crimped onto stile for robustness and strength
Heavy duty PVC shoes provide greater grip and are non-marking
Suited for electrical works:
Electricity ProvidersSKU: 305
