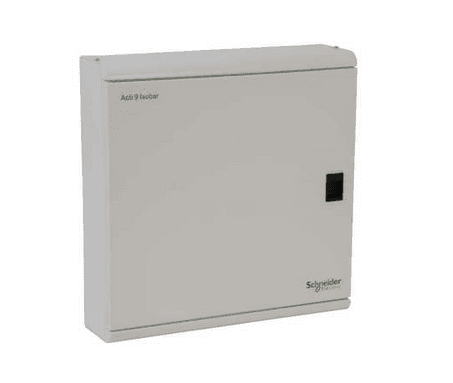

Schneider Electric 3 Phase 12 Ways Distribution Board

Disbo-Extra Isobar is a complete range of single and 3 phase distribution boards for commercial and industrial applications.

Standard distribution boards up to 24 ways
Meter ready distribution boards up to 24 ways
Split metered distribution boards up to 22 ways
Any outgoing way can be converted to switch the Neutral
Fully type tested conditional short circuit rating of 25kA to BS EN 61439-3
High performance MCB 10kA BS EN 60898 15kA BS EN 60947-2 in B, C or D curve 1, 2, 3, 4 pole
250A Busbar rating
Isobar disconnection to BS EN 60947-3 ensuring unused outgoing ways are isolated
Option of switching outgoing neutral on all boards using distributed neutral kit
Terminal block for feeding up to 100A
Range of incomers: switch disconnectors, residual current devices, terminal blocks, MCCB
Single pole RCBO for new or retrofit maintaining device density
Full range of device accessories and auxiliaries
Knockouts for cable gland and conduit mixed to suit the installation needs without loss of space
Removable insulated pan assembly
Fully shrouded neutral
Split neutral bars
Removable gland plates
Optional metering, dual supply, surge protection and contactor on incoming Metered extension enclosures.


The Range

Disbo-Extra helps you meet developing energy efficiency and environmental certifications or requirements, now and in the future. It minimises impact from the design stage, through the installation’s lifetime of use and eventual recycling. Through both design and technology, Disbo-Extra provides you with the key combination of less impact and more efficiency that is necessary for the environment today.
Disbo-Extra is your safe, efficient and simple choice for low-voltage modular systems.

Designed for safety, even in the most demanding environments
Safety matters most and Disbo-Extra Isobar gives you, your customers and their installations the highest level of protection available. It guarantees 100 per cent safe operation and maintenance for you and your customers. Its international certifications and numerous protection innovations allow Disbo-Extra to exceed even the most demanding requirements to give you total safety during maintenance, for the lifetime of your installation.

Comprehensive certification
Delivers complete industry-approved protection
Disbo-Extra is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards and demonstrates to your customers that you use industry-approved materials and best practices.

The right solution for every application
Disbo-Extra simplifies final distribution operations in buildings and industrial facilities, giving you the right solution with the right technical characteristics for every application. As new installation standards emerge or building requirements are modified, Disbo-Extra can easily scale to meet your needs. It’s a flexible, open system with all-in-one, integrated components which can communicate with any building management system.
