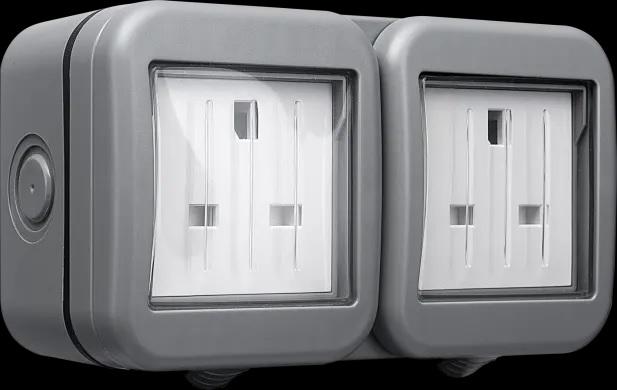

WPB24 – BG 13A DOUBLE WEATHER PROOF SOCKET UNSWITCHED

13A Rated
Easy to install, supplied with fixing screws and installation instructions
IP55 rated with cover closed
20mm and 25mm knock-outs in the supplied mounting box
Adjustable horizontal and vertical fixing centres
Minimum mounting box depth: 25mm
Angled colour coded terminals with captive screws
Durable see through cover
Suitable for installation in outdoor locations, garages and sheds
Twin earth fitted as standard for high integrity circuits
₦10,500.00
CompareOutdoor sockets are an ideal option for managing outdoor or garden appliances and can be installed in gardens and patios, as well as in shed’s, outhouses and garages. This 13A double unswitched outdoor power socket from British General is IP55 rated with the cover closed, has 20mm and 25mm knock-outs in the supplied mounting box and fixing centres with horizontal and vertical adjustment.
Based on 0 reviews
Be the first to review “WPB24 – BG 13A DOUBLE WEATHER PROOF SOCKET UNSWITCHED”
-
COMPUTING, Electro, LAPTOPS
HP 250 G7 NOTEBOOK PC (6BP28EA)
Description
SPECIFICATION
OPERATING SYSTEM FreeDOS 2.0 MEMORY SLOTS 2 SODIMM MEMORY 4 GB DDR4-2133 SDRAM (1 x 4 GB) STANDARD MEMORY NOTE Transfer rates up to 2133 MT/s. MEMORY AND STORAGE 4 GB memory
500 GB HDD storageSTORAGE TYPE HDD INTERNAL STORAGE 500 GB 5400 rpm SATA PROCESSOR SPEED 2.3 GHz PROCESSOR FAMILY 7th Generation Intel® Core™ i3 processor (i3-7020U) PROCESSOR Intel® Core™ i3-7020U with Intel® HD Graphics 620 (2.5 GHz base frequency, up to 3.1 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores) GRAPHIC CARD FOOTNOTE NUMBER  5 GRAPHICS (INTEGRATED) Intel® HD Graphics 620 DISPLAY 39.6 cm (15.6″) diagonal HD SVA eDP anti-glare LED-backlit, 220 cd/m², 67% sRGB (1366 x 768) DISPLAY SIZE (DIAGONAL) 39.6 cm (15.6″) BATTERY LIFE NOTE Battery is internal and not replaceable by customer. Serviceable by warranty. Fast charging 90% in 90 minutes. BATTERY TYPE HP Long Life 3-cell, 41 Wh Li-ion BATTERY WEIGHT 0.18 kg POWER HP Smart 45 W External AC power adapter WEIGHT Starting at 1.78 kg
6AUDIO FEATURES Dual stereo speakers CAMERA HP VGA Camera KEYBOARD Full-size island-style keyboard with numeric keypad EXPANSION SLOTS 1 multi-format digital media reader7 EXPANSION SLOTS NOTE Supports SD, SDHC, SDXC. PORTS 2 USB 3.1 Gen 1
1 USB 2.0
1 HDMI 1.4b
1 RJ-45
1 headphone/microphone combo
1 AC power8NETWORK INTERFACE Integrated 10/100/1000 GbE NIC WIRELESS Realtek 802.11ac (1×1) Wi-Fi® and Bluetooth® 4.2 Combo9 SECURITY MANAGEMENT TPM 2.0
Security lock slot10Â 11WARRANTY 1 year standard parts and labor limited warranty (1-1-0), depending on country (upgrades available). 1 year limited warranty on primary battery. SKU: n/a -
Electro, Schneider Circuit Breakers, SCHNEIDER SECTIONS
Acti9 iC60N 2P 25A C Miniature Circuit breaker A9F44225
Electro, Schneider Circuit Breakers, SCHNEIDER SECTIONSActi9 iC60N 2P 25A C Miniature Circuit breaker A9F44225
Main range Acti 9product name Disbo iC60product or component type Miniature circuit-breakerdevice short name IC60Npoles description 2Pnumber of protected poles 2[In] rated current 25Â Anetwork type AC/DCtrip unit technology Thermal-magneticcurve code Cbreaking capacity 6Â kA Icu at 100…133 V DC conforming to EN/IEC 60947-2
6000Â A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36Â kA Icu at 12…133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20Â kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10Â kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6Â kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2utilisation category Category A conforming to EN/IEC 60947-2Complementary network frequency 50/60 Hz[Ue] rated operational voltage 440 V AC 50/60 Hzmagnetic tripping limit 8 x In +/- 20 %[Ics] rated service breaking capacity 27Â kA 75Â % conforming to EN/IEC 60947-2 – 12…133 V AC 50/60 Hz
15Â kA 75Â % conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz
7.5Â kA 75Â % conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz
4.5Â kA 75Â % conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz
6000Â A 100Â % conforming to EN/IEC 60898-1 – 415 V AC 50/60 Hz
6 kA 100 % conforming to EN/IEC 60947-2 – 100…133 V DClimitation class 3 conforming to EN/IEC 60947-2[Ui] rated insulation voltage 500 V AC 50/60 Hz[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2contact position indicator Yescontrol type Togglelocal signalling Trip indicatormounting mode Clip-onmounting support Rail9 mm pitches 4height 85 mmwidth 36 mmdepth 78.5 mmnet weight 0.25 kgcolour Whitemechanical durability 20000 cycleselectrical durability 10000 cyclesprovision for padlocking Padlockableconnections – terminals Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexiblewire stripping length 14 mm for top or bottom connectiontightening torque 2 N.m top or bottomearth-leakage protection Separate blockSKU: n/a -
ELECTRICAL FITTINGS, Electro, HOME&OFFICE LIGHTING, LED LIGHTS, LIGHTING, OUTDOOR FITTINGS, OUTDOOR LIGHTS
Philips Essential SmartBright G5 LED Floodlight 100W
ELECTRICAL FITTINGS, Electro, HOME&OFFICE LIGHTING, LED LIGHTS, LIGHTING, OUTDOOR FITTINGS, OUTDOOR LIGHTSPhilips Essential SmartBright G5 LED Floodlight 100W
Essential SmartBright G5 LED Floodlight
BVP150 LED100/CW PSU 100W SWB G3 GM
Essential SmartBright G5 LED Floodlight, 10000 lm, 100 W, 865 cool daylight, 110°, Safety class I, Mounting bracket
The Essential SmartBright G5 LED Floodlight is the new successor with robust diecast aluminum housing suitable for general outdoor application. Lightweight, with a robust die-cast aluminum housing and corrosion-proof coating, it’s suitable for general outdoor applications. Plus, with a higher efficacy than the previous generation, it also saves more energy.
Light Technical
Luminous Flux                        10,000 lm
Luminous Efficacy (rated) (Nom)Â Â Â Â Â Â Â Â 100 lm/W
Correlated Color Temperature (Nom)Â Â Â Â Â 6500 K
Color rendering index (CRI)Â Â Â Â Â Â Â Â Â Â Â Â Â Â 80
Number of light sources                  1
Beam angle of light source                110 degree(s)
Light source color                        865 cool daylight
Optic type Wide beam Optical cover type    Tempered glass
SKU: n/a -
ELECTRICAL INDUSTRIAL, Electro, RECLINE CABLES
Cometstar Nigeria Cable NAY 4 X 25.0MM
The construction and material are determined by three main factors:
• Working voltage, determining the thickness of the insulation;
• Current-carrying capacity, determining the cross-sectional size of the conductor(s);
• Environmental conditions such as temperature, water, chemical or sunlight exposure, and mechanical impact, determining the form and composition of the outer cable jacketSKU: Cometstar Nigeria Cable NAY 4 X 25.0MM -
Electro, Schneider Industrial Sockets, SCHNEIDER SECTIONS
Thorsman – Cable reel 25m HO5VVF 3G1.5 IP44 BS 110V IMT33144
Electro, Schneider Industrial Sockets, SCHNEIDER SECTIONSThorsman – Cable reel 25m HO5VVF 3G1.5 IP44 BS 110V IMT33144
Main range PROchantierproduct or component type Cable reeldevice application Power supply[In] rated current 13 AComplementary cable length 25 mcable cross section 1.5 mm²type of cable H05VV-F3G1.5quantity per set Set of 1height 260 mmwidth 352 mmdepth 205 mmnet weight 5.13 kgSKU: n/a
Related products
-
DISTRIBUTION BOARDS, Electro, DISTRIBUTION BOARDS
Hager 4 Way 100A Single Phase Consumer Units DB C/W MCB
DISTRIBUTION BOARDS, Electro, DISTRIBUTION BOARDSHager 4 Way 100A Single Phase Consumer Units DB C/W MCB
Features
These are most elegantly designed DBs, to suit the decor of homes
Raised neutral link for easy wiring
Spring loaded outer cover swings open by just pressing the lock as in case of Elegance series.
Supplied with masking sheet to protect components from cement during plastering
Supplied with neutral & earth link, top & bottom detachable platesSKU: 266 -
EARTH LEAKAGE PROTECTION DEVICES, Electro, ELECTRICAL INDUSTRIAL
Lutron Gu-3001 Precision Milli Gauss Meter
EARTH LEAKAGE PROTECTION DEVICES, Electro, ELECTRICAL INDUSTRIALLutron Gu-3001 Precision Milli Gauss Meter
Lutron GU-3001 is a precision milli gauss meter.
Resolution:
– 199.9 mG to 199.9 mG.
200 mG, -200 mG
– 19.99 uT to 19.99 uT.
20.0 uT, -20.0 uT.Accuracy ± ( 2 % + 2 mG )
DC/AC miligauss Magnetometer
DC and AC magnetic field measurement
Wide measure range: 3,000 milligauss
N pole/S pole indicator
RS232/USB computer interface
The meter can detect the magnetic fields as small as 0.1 milligaus
Auto shut off is available to save battery life
Power supply from batteries or DC 9V adapter inSKU: n/a -
INDOOR LIGHTS, Electro, LED LIGHTS, LIGHTING
OSRAM LED SubstiTUBE Value ST8V-0.6m-9W-865-EM 9W/6500K
Product family features
- T8 LED tube made of glass with G13 base
- Mercury-free and RoHS compliant
- Luminous efficacy: up to 86 lm/W
- Type of protection: IP20
Product family benefits
- High color homogeneity
- Energy savings of up to 68 % compared to conventional 1,500 mm T8 fluorescent lamp
- Instant flickerfree starting
Areas of application
- Corridors, stairways, parking garages
- Cooling and storage rooms
- Warehouses
- Domestic applications
- General illumination within ambient temperatures from –20…+45 °C
Equipment / Accessories
- Suitable for operation on magnetic control gear
Legal advice
When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.SKU: 12
